Back in stock early September

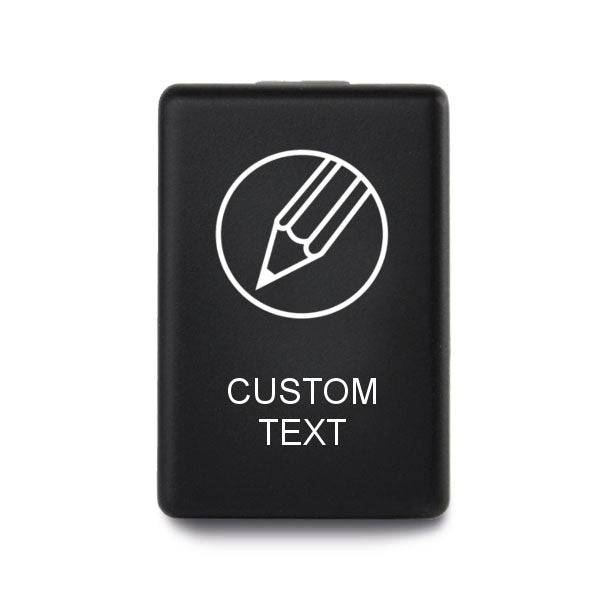

This factory-style custom switch is designed specifically to fit 3rd Generation vehicles only and will fit into the original dashboard, (right-hand side of the steering wheel) without any modification.
Suitable for the following vehicles:
- Isuzu D-Max 3rd Generation Sept 2020 onwards
- Mazda BT-50 3rd Generation Oct 2020 onwards
- Holden Colorado 2012 – 2016 (either side of the steering wheel on upper dash)
- Isuzu D-Max 2nd Generation 2013 – 2020 (either side of the steering wheel on upper dash)
Illumination:
The text illuminates white via the dash light circuit. Once the switch is pushed on, the upper icon window illuminates blue.
Specifications include:
- Switch cut out size is 18mm x 28mm.
- Housing material black PC/ABS
- Dual switch inputs / dual independent outputs
- Dual LED illumination (white/blue)
- Suitable for positive switched vehicles only
- Harness included (300mm in length)
- Current rating 3 amps @ 12v (must be used in conjunction with relay’s)
Harness compatibility:
Compatible with Lightforce Single Switch 8 Pin Adaptor # SWADP4. This enables direct connection to Lightforce Harness part number STRIKERLEDHARN (Striker LED Harness) or LFDLHSS (Universal Driving Light Harness).
Switch connectivity:
