Driving Light Single Switch To Suit Mitsubishi Triton MV

Driving Light Single Switch To Suit Mitsubishi Triton MV

$13.65

Original: $39.00

-65%
Driving Light Single Switch To Suit Mitsubishi Triton MV—

$39.00

$13.65

The Story

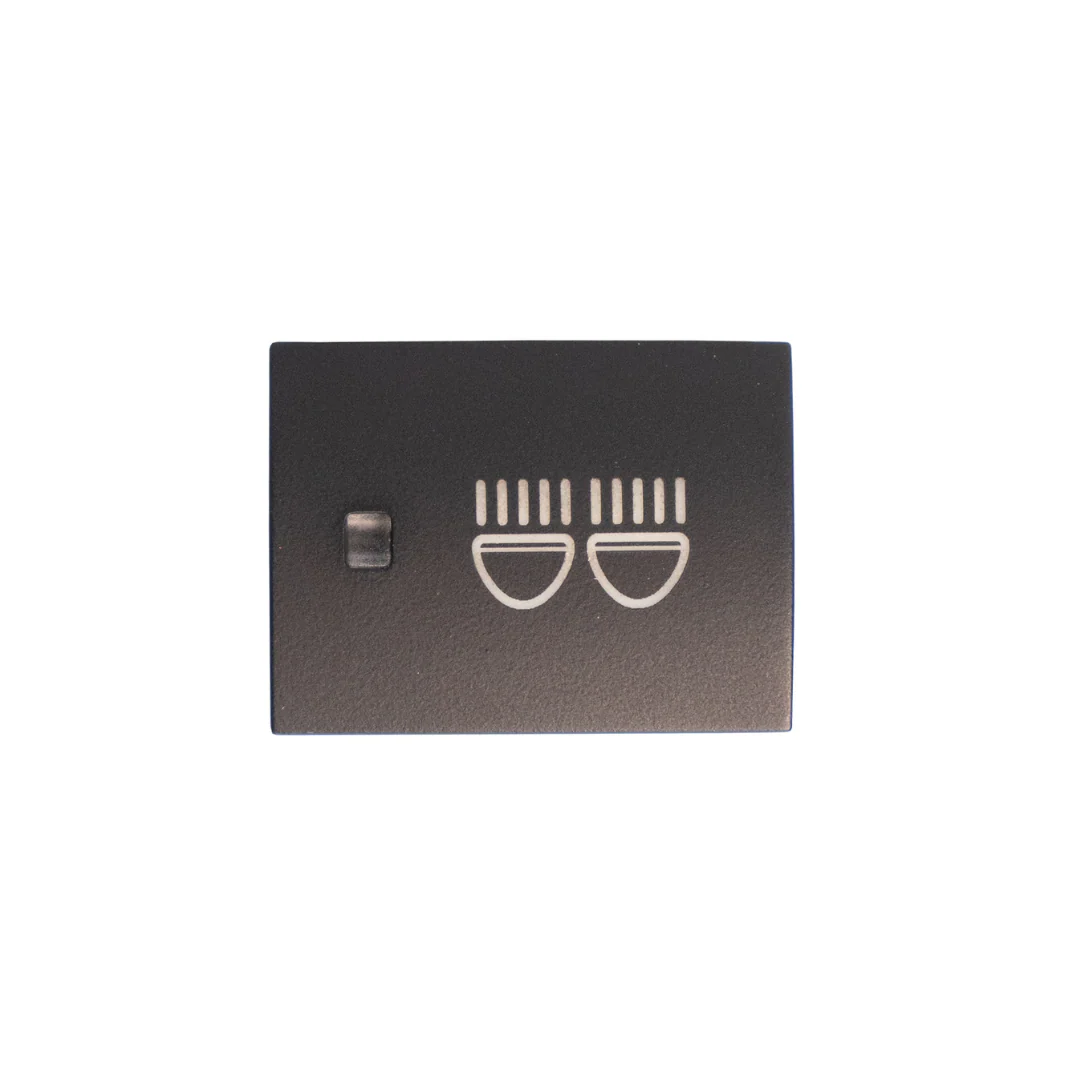

The driving light switch icon and window illuminate white in the off position via the dash light circuit. Once the switch is pushed on, the driving light icon and window illuminate amber.

SWITCH CUTOUT SIZE

  • 23.9mm W x 18mm H

WIRING INSTRUCTIONS

  • 3 amp output (use with relay)

PIN CONFIGURATION

  • The Red illumination wire on pin 2 controls the white backlight for the icon
  • The green illumination wire on pin 7 controls the amber active light in the little window.
  • The amber will only come on when the switch is in the on position.


PIN LOCATION

Description

The driving light switch icon and window illuminate white in the off position via the dash light circuit. Once the switch is pushed on, the driving light icon and window illuminate amber.

SWITCH CUTOUT SIZE

  • 23.9mm W x 18mm H

WIRING INSTRUCTIONS

  • 3 amp output (use with relay)

PIN CONFIGURATION

  • The Red illumination wire on pin 2 controls the white backlight for the icon
  • The green illumination wire on pin 7 controls the amber active light in the little window.
  • The amber will only come on when the switch is in the on position.


PIN LOCATION
