Lightforce Single Switch To Suit Mitsubishi Triton MV

Lightforce Single Switch To Suit Mitsubishi Triton MV

$13.65

Original: $39.00

-65%
Lightforce Single Switch To Suit Mitsubishi Triton MV—

$39.00

$13.65

The Story

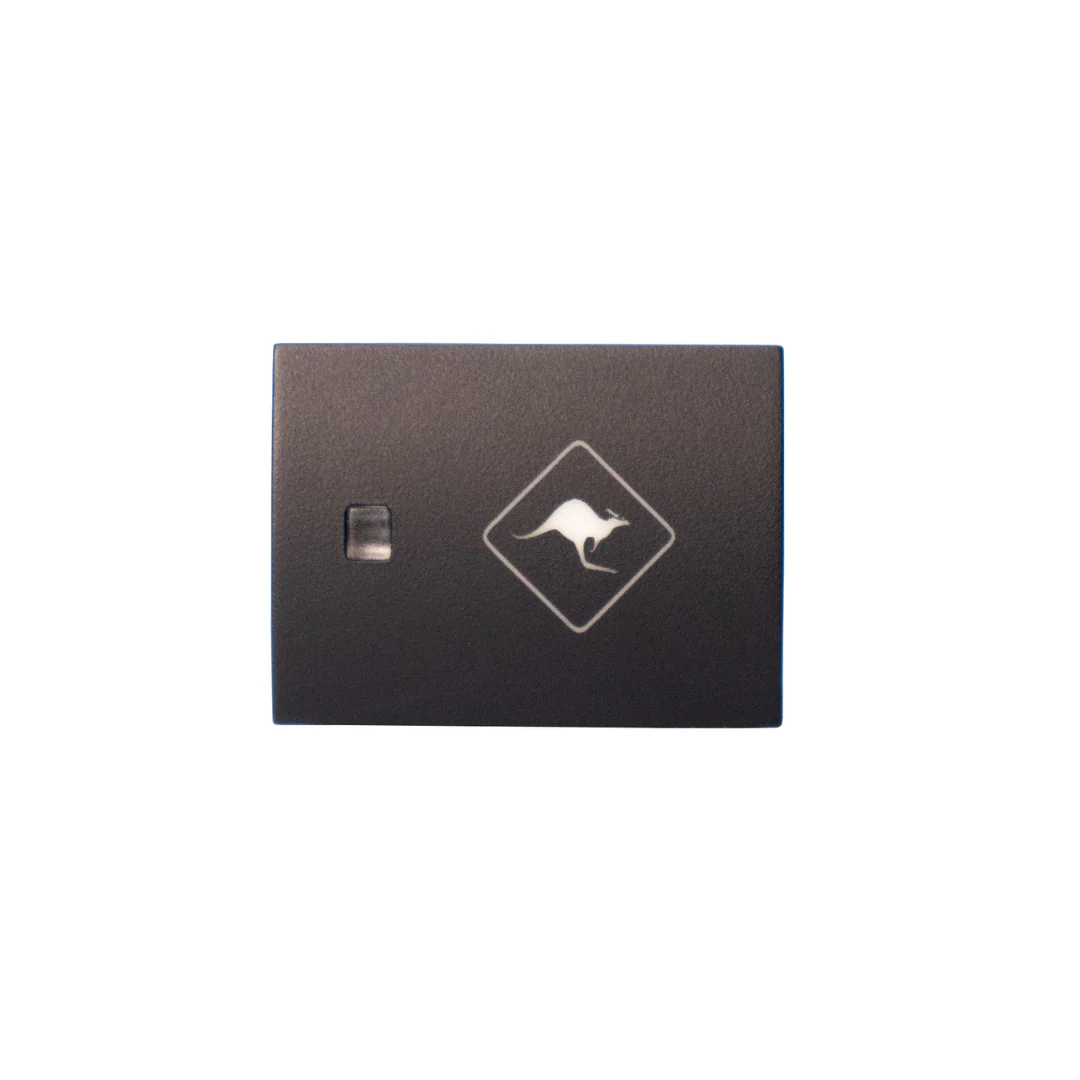

The Lightforce switch icon and window illuminate white in the off position via the dash light circuit. Once the switch is pushed on, the Lightforce icon and window illuminate amber.

SWITCH CUTOUT SIZE

  • 23.9mm W x 18mm H

WIRING INSTRUCTIONS

  • 3 amp output (use with relay)

PIN CONFIGURATION

  • The Red illumination wire on pin 2 controls the white backlight for the icon
  • The green illumination wire on pin 7 controls the amber active light in the little window.
  • The amber will only come on when the switch is in the on position.


PIN LOCATION

Description

The Lightforce switch icon and window illuminate white in the off position via the dash light circuit. Once the switch is pushed on, the Lightforce icon and window illuminate amber.

SWITCH CUTOUT SIZE

  • 23.9mm W x 18mm H

WIRING INSTRUCTIONS

  • 3 amp output (use with relay)

PIN CONFIGURATION

  • The Red illumination wire on pin 2 controls the white backlight for the icon
  • The green illumination wire on pin 7 controls the amber active light in the little window.
  • The amber will only come on when the switch is in the on position.


PIN LOCATION
